What is Cantilever Stack Parking System?

The Cantilever Stack Parking System is a reliable and economical solution that maximizes parking capacity. It is ideal for residential societies, commercial complexes, and real estate developments.

How much space is required for installation?

Our systems are designed to be space-efficient, requiring minimal headroom and ground space, making it a versatile choice for basements, podiums, and open spaces.

Is the system safe for heavy vehicles like SUVs?

Yes, our parking systems are built with heavy-duty structural steel and advanced locking mechanisms to safely secure SUVs and sedans.

Do you provide installation services PAN India?

Absolutely. Honesty Parking provides complete end-to-end manufacturing, installation, and maintenance services for parking systems across New Delhi, Mumbai, Pune, Bangalore, Hyderabad, and all over India.

Space Saving Design

Cantilever Stack Parking System

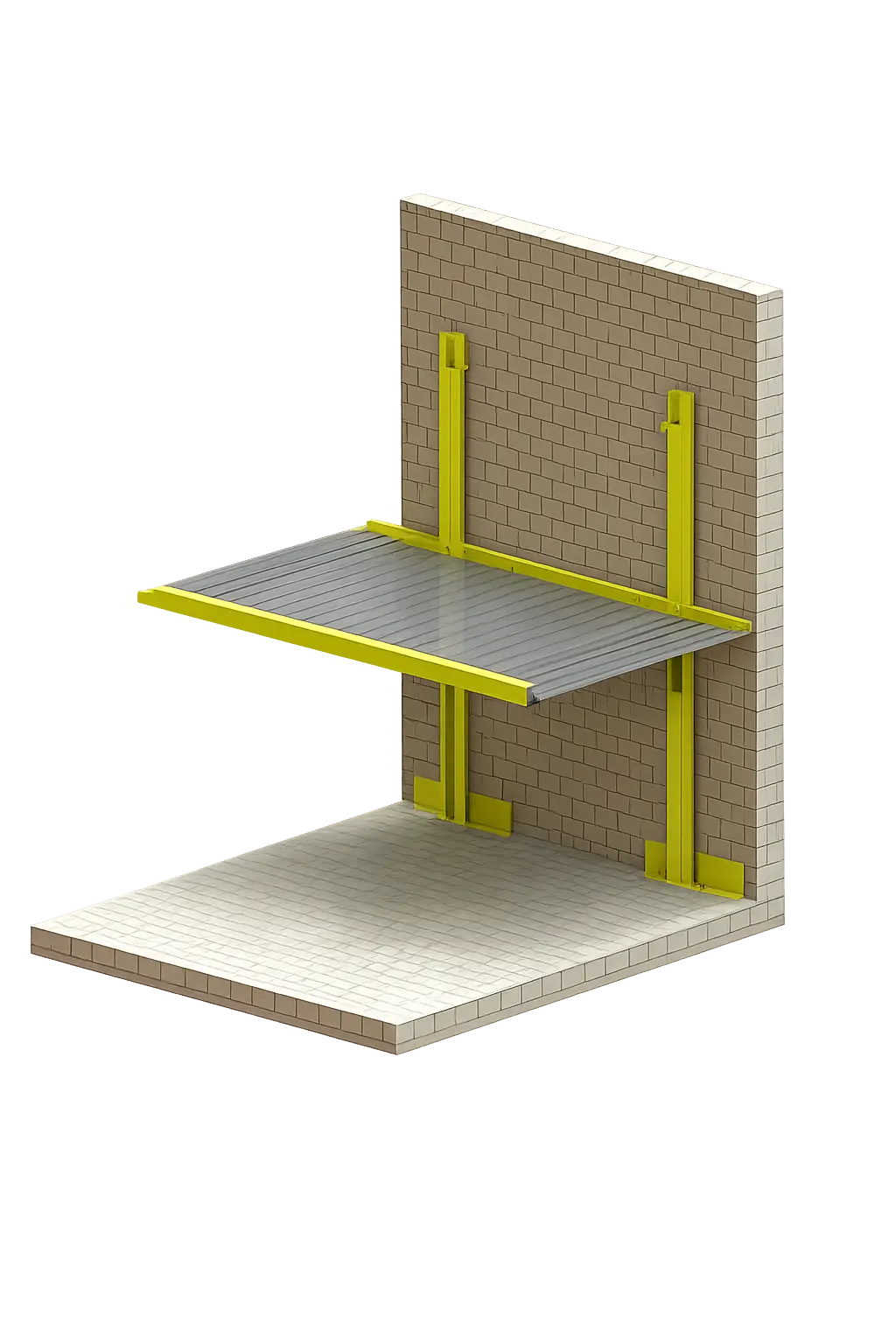

This system is installed to park only one car on the platform and the ground level is left clear for vehicular movements. The system has column arrangement only on one side, generally on the boundary side, leaving the entire driveway clear for passage.

Safe & Reliable

Engineered for safety
and long term use

Easy Operation

Smooth hydraulic
& mechanical system

Built to Last

Premium components
& high durability

Space Efficient

Double parking in
the same footprint

Cantilever Parking System

Independent Parking with Maximum Convenience

Our Cantilever Parking System is engineered to provide independent, space-efficient parking without the need to move adjacent vehicles. Built with a high-strength steel structure and advanced hydraulic lifting technology, it ensures smooth, safe, and reliable operation. Ideal for residential apartments, commercial buildings, offices, hotels, and premium developments, this system offers easy vehicle access, enhanced safety, and optimal space utilization while minimizing maintenance requirements.

⚡ Fast Operation

🛡️ Safety First

🔧 Low Maintenance

✅ 2500 Kg Capacity

Specifications

Comprehensive dimensional requirements, electrical specifications and structural guidelines are available in the product brochure.

Dependent Type

MODEL		Small Size Car	SUV's
Machine Specification	Platform Length (mm)	4000 to 4500	4800 to 5000
	Platform Width (mm)	2200	2500
	Lifting Capacity per Platform (Kg)	2500	3000
	Lifting Height	1500 to 2000	1900 to 2100
	Lifting Operation	Hydraulic & Mechanical	Hydraulic & Mechanical
	Motor on Power Pack	2.2KW/3HP	2.2KW/3HP
	Operating Panel	Automatic and Manual	Automatic & Manual

For more details Download Brochure

Download Brochure

Standard Features

Space & Design

Vehicles can be driven across stacks.
One platform per system.
Lifting mechanism installed only on one side of the stack.
Color scheme for the system will be provided as per the client's color theme.

Operation & Safety

Optional photo sensor for the bottom car to prevent accidental lowering of upper stack.
Electromagnetic locking mechanism to prevent unwanted lowering of upper stack.
Limit switches to restrict the travel height by auto cutting off the motor.
Emergency shutdown switch.
Remote switch box with key/push button for easy operation.

Build Quality

Hot dipped galvanized corrugated floor plates to reduce dead weight and increase durability.
Compact power pack system with enclosed motors and rubber bush fittings for reduced noise levels.
