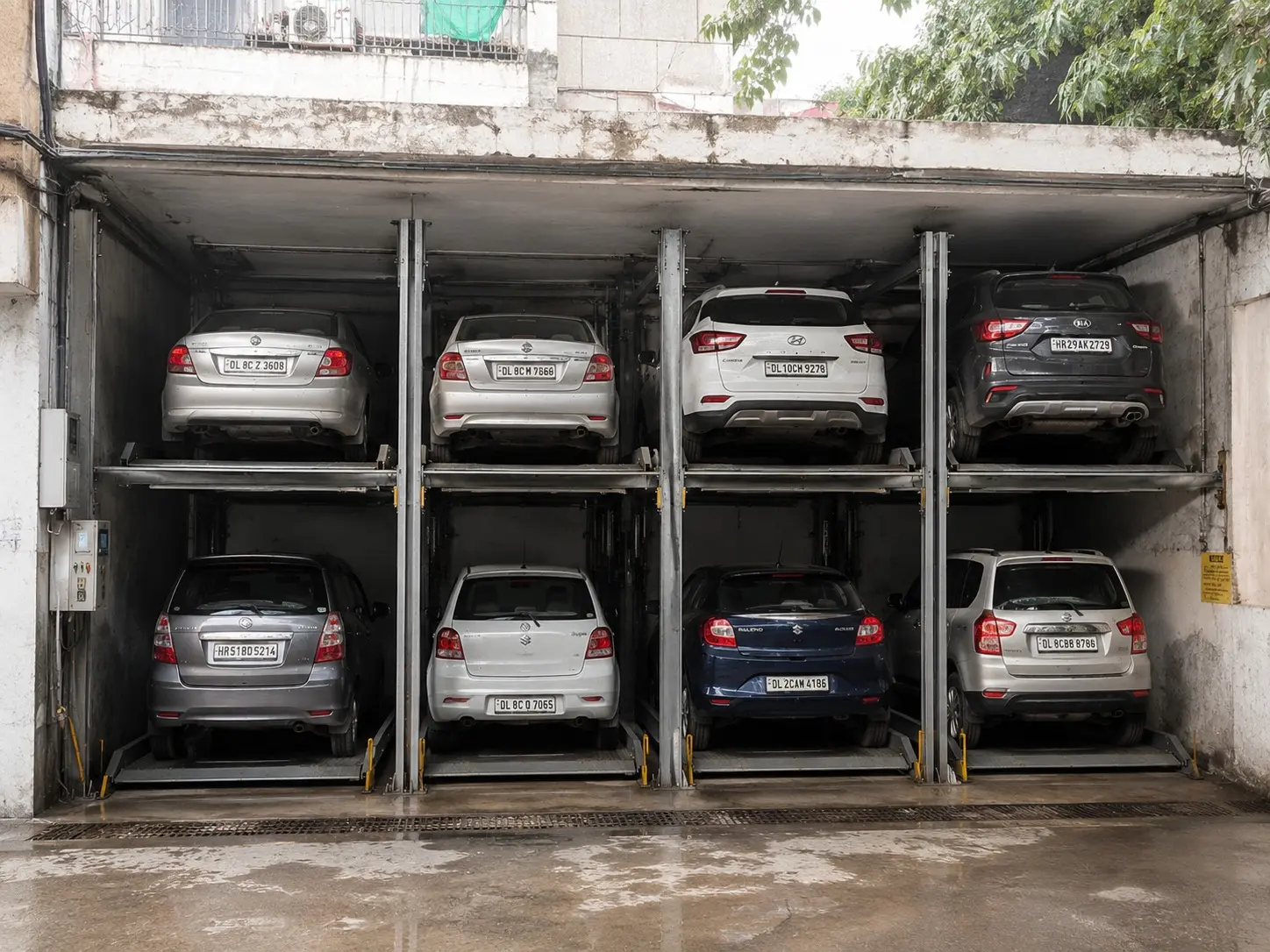

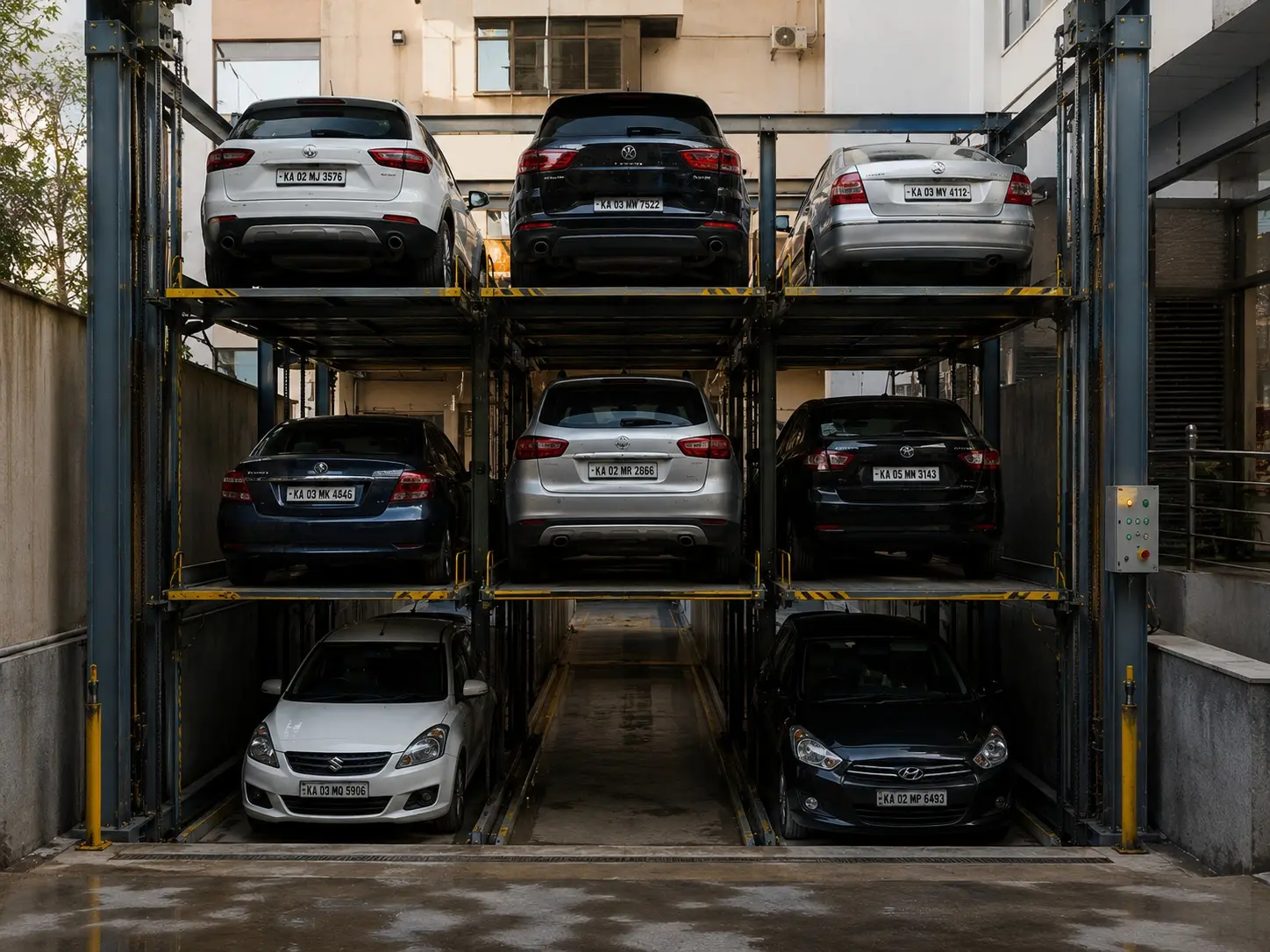

This hybrid system operates with a pit level moving vertically, ground level shifting horizontally, and top level moving vertically. A highly optimized, independent solution for high-density areas.
Comprehensive dimensional requirements, electrical specifications and structural guidelines are available in the product brochure.
| MODEL | Small Car | SUV | |
|---|---|---|---|
|
Machine Specification |
Platform Length (mm) | 4800-5000 | 4500-5000 |
| Platform Width (mm) | 2300-2500 | 2300-2500 | |
| Lifting Capacity (kg) | 2000 | 2500 | |
| Lifting Clearance (mm) | 1700-1800 | 1800-2000 | |
| Drive Type | Hydraulic / Electromechanical | Hydraulic / Electromechanical | |
| Power Pack | 2.2KW / 7.5HP | 2.2KW / 7.5HP | |
| Control | Automatic / Manual | Automatic / Manual | |
| Safety | Anti-Fall Lock, Sensors, Emergency Stop | Anti-Fall Lock, Sensors, Emergency Stop | |
For more details Download Brochure
Download BrochureSpecifically engineered to optimize land use. By stacking vehicles vertically, it doubles or triples the available spaces in residential and commercial areas.
Equipped with PLC touch screen automatic/manual operation panels. Simple and intuitive controls allow users to retrieve cars quickly and smoothly.
Comprehensive security design with anti-fall locks, photoelectric sensors to detect car height & length, and emergency stop switches.
Heavy duty hydraulic or electromechanical motor pack drive combined with high structural strength steel frame ensuring quiet, smooth, and long-lasting operations.
