Space Saving Design

Cantilever Stack Parking System

This system is installed to park only one car on the platform and the ground level is left clear for vehicular movements. The system has column arrangement only on one side, generally on the boundary side, leaving the entire driveway clear for passage.

Safe & Reliable

Engineered for safety
and long term use

Easy Operation

Smooth hydraulic
& mechanical system

Built to Last

Premium components
& high durability

Space Efficient

Double parking in
the same footprint

Cantilever Stack Parking System

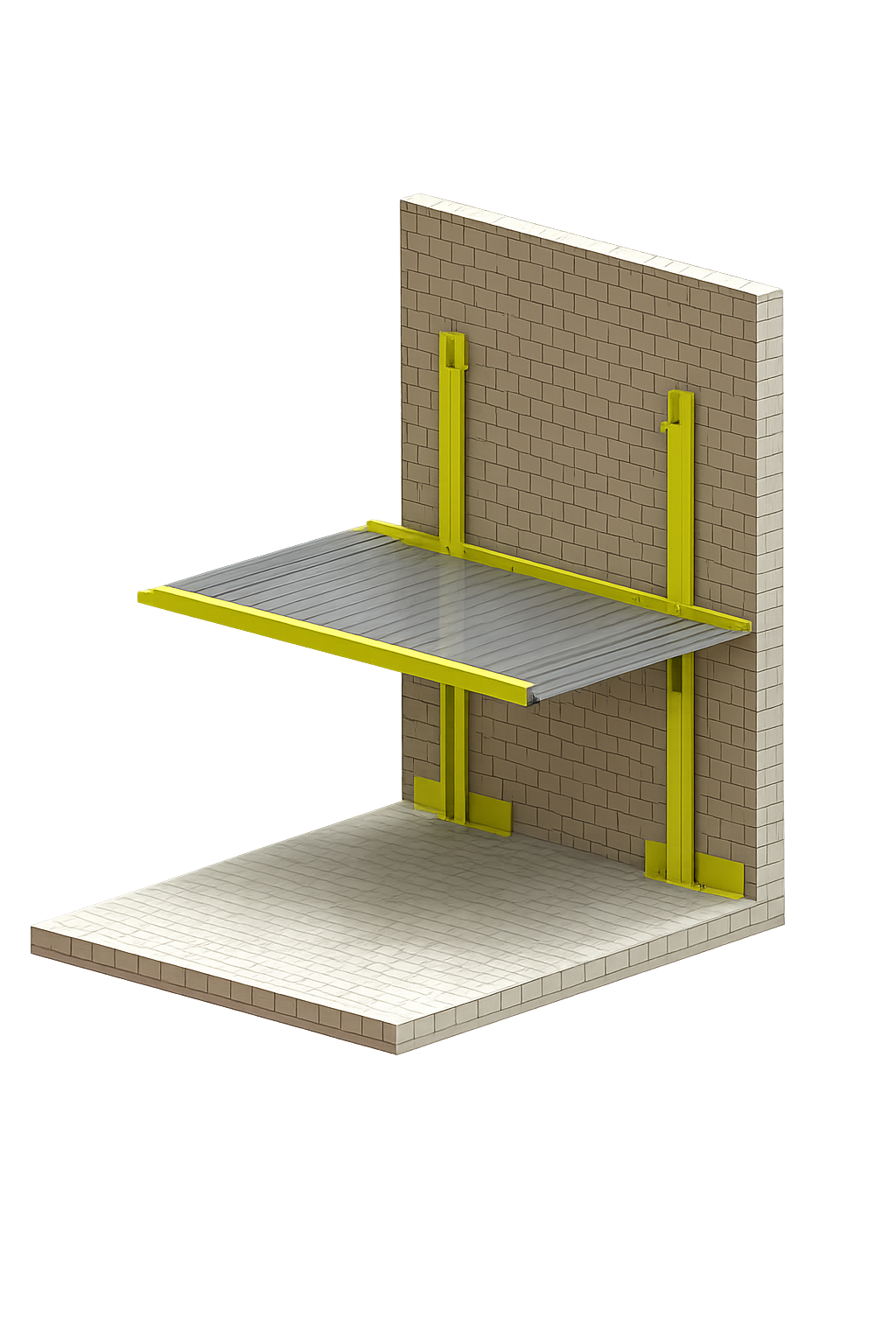

Stack Parking System G+1 Platform

Cantilever Parking System

Independent Parking with Maximum Convenience

Our Cantilever Parking System is engineered to provide independent, space-efficient parking without the need to move adjacent vehicles. Built with a high-strength steel structure and advanced hydraulic lifting technology, it ensures smooth, safe, and reliable operation. Ideal for residential apartments, commercial buildings, offices, hotels, and premium developments, this system offers easy vehicle access, enhanced safety, and optimal space utilization while minimizing maintenance requirements.

Fast Operation
🛡️ Safety First
🔧 Low Maintenance
2500 Kg Capacity


Specifications (Dependent Type)

Descriptions Small Size Car SUV's
Platform Length (mm) 4000 to 4500 4800 to 5000
Platform Width (mm) 2200 2500
Lifting Capacity per Platform (Kg) 2500 3000
Lifting Height 1500 to 2000 1900 to 2100
Lifting Operation Hydraulic & Mechanical Hydraulic & Mechanical
Motor on Power Pack 2.2KW/3HP 2.2KW/3HP
Operating Panel Automatic and Manual Automatic & Manual

Built for Safety.
Designed for Space.
Made to Last.

Cantilever Stack Parking System

Standard Features

Space & Design

  • Vehicles can be driven across stacks.
  • One platform per system.
  • Lifting mechanism installed only on one side of the stack.
  • Color scheme for the system will be provided as per the client's color theme.

Operation & Safety

  • Optional photo sensor for the bottom car to prevent accidental lowering of upper stack.
  • Electromagnetic locking mechanism to prevent unwanted lowering of upper stack.
  • Limit switches to restrict the travel height by auto cutting off the motor.
  • Emergency shutdown switch.
  • Remote switch box with key/push button for easy operation.

Build Quality

  • Hot dipped galvanized corrugated floor plates to reduce dead weight and increase durability.
  • Compact power pack system with enclosed motors and rubber bush fittings for reduced noise levels.
