Independent Parking

Pit-Stack G-1 Parking System

The Pit-Stack G-1 Parking System is an advanced underground parking solution designed to maximize parking capacity while maintaining independent vehicle access. The system features a single hydraulic lifting platform installed within a specially designed pit below ground level. When a vehicle needs to be parked or retrieved, the platform smoothly lifts or lowers using a precision-engineered hydraulic mechanism, ensuring safe, reliable, and effortless operation.

Safe & Reliable

Engineered for safety
and long term use

Easy Operation

Smooth hydraulic
& mechanical system

Built to Last

Premium components
& high durability

Space Efficient

Double parking in
the same footprint

Pit Parking System
Pit Parking System

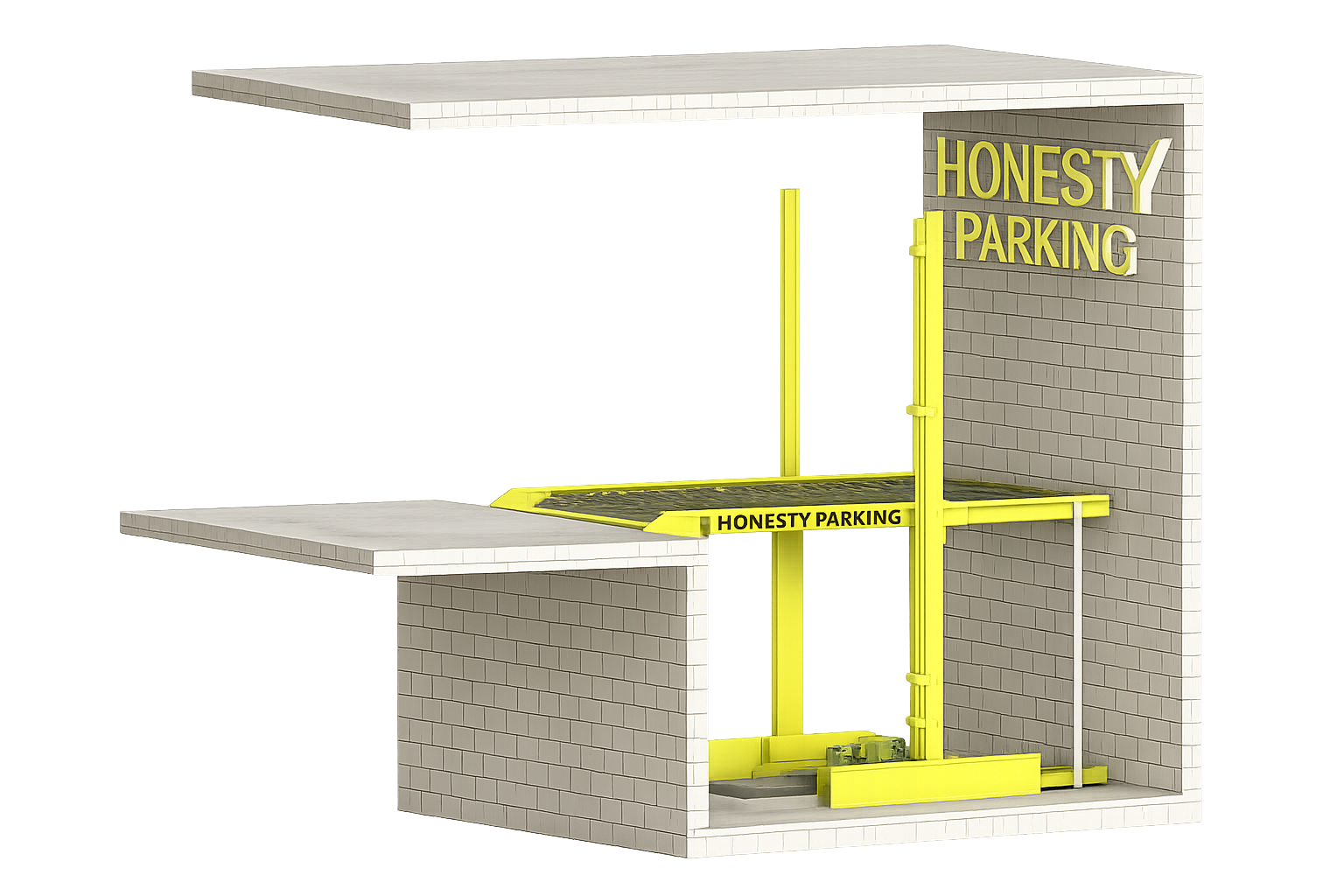

Pit-Stack G-1 Parking System
Underground Parking Solution for Smarter Space Management

Our Single Pit Parking System is engineered to provide a compact, secure, and space-saving parking solution for modern infrastructure. Built with a high-strength steel platform and advanced hydraulic lifting technology, it delivers smooth vehicle movement, reliable operation, and enhanced safety.

⚡ Fast Operation
🛡️ Safety First
🔧 Low Maintenance
✅ 2500 Kg Capacity


Specifications (Pit-Stack G-1 Parking Independent)

Descriptions Small Size Car SUV's
Platform Length (mm) 4800 to 5000 4500 to 5000
Platform Width (mm) 2300 to 2500 2300 to 2550
Lifting Capacity per Platform (Kg) 2000Kg 2000
Lifting Clearance 1700 to 1800 1800 to 2000
Lifting Operation Hydraulic & Electromechanical Hydraulically & Electromechanical
Motor on Power Pack 2.2KW/5HP 2.2KW/5HP
Operating Panel Automatic / Manual Automatic / Manual

Built for Safety.
Designed for Space.
Made to Last.

Pit Parking System

Standard Features

Space & Design

  • Independent underground parking platform.
  • Space-saving pit installation.
  • Two platforms per system.
  • Compact design for residential and commercial projects.
  • One platforms on ground & one in pit.
  • Color scheme for the system can be provided as per the client's requirement.

Operation & Safety

  • Optional photo sensor for the middle car to prevent accidental lowering of upper stack or lifting of the lower stack.
  • Electromagnetic locking mechanism to prevent unwanted lowering of upper stacks.
  • Limit switches to restrict the travel height by auto cutting off the motor.
  • Emergency shutdown switch.

Build Quality

  • Hot dipped galvanized corrugated floor plates on platforms to reduce dead weight and increase durability.
  • Hydraulic cylinders & chain supported balancing used for lifting mechanism
  • Compact power pack system with enclosed motor and rubber bush fittings for reduced noise levels.

Related Products

Pit-Stack G-1

Pit-Stack G-1

Underground single level parking solution.

View Details →
Pit-Stack G-1 to G+1

Pit-Stack G-1 to G+1

Versatile underground and above ground combination.

View Details →
Multilevel Pit Parking

Multilevel Pit Parking

Advanced high-capacity underground parking system.

View Details →

Get the Full Details

Download our comprehensive brochure to explore specifications, dimensions, and more details about our parking systems.

Download Brochure
